概述

波长	%反射率	1.0''零件编号	2.0''零件编号

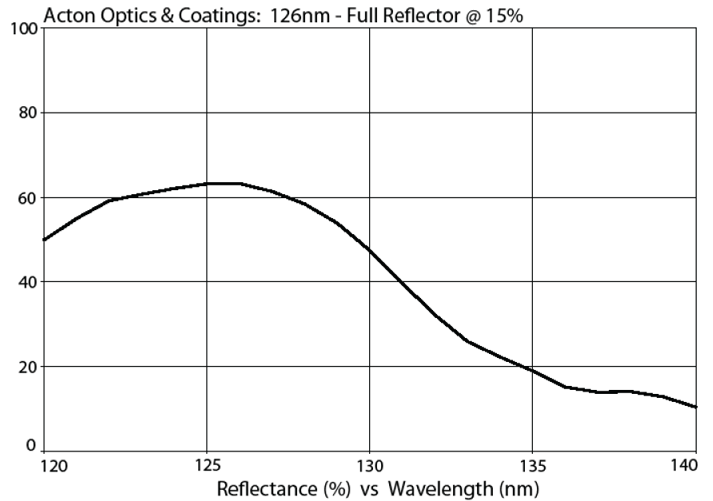

126nm	≥ 55% @ NI	M126-FR-1D-MB	M126-FR-2D-MB

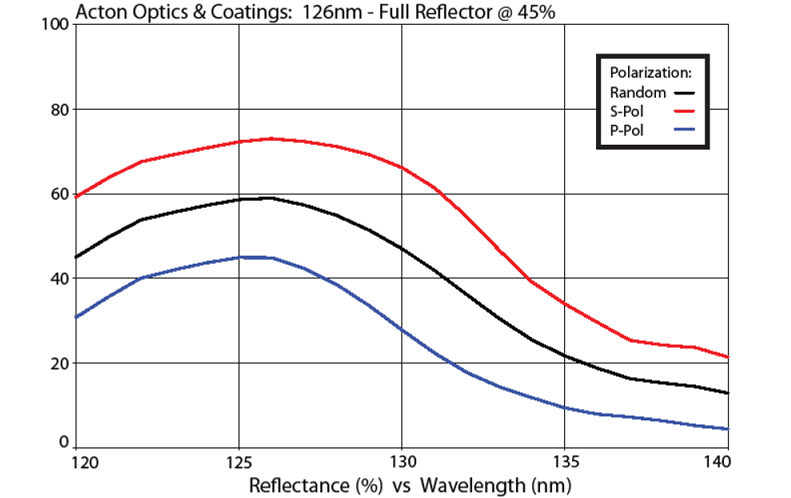

126nm	≥ 50% @ 45° AOI	M126-FR45-1D-MB	M126-FR45-2D-MB

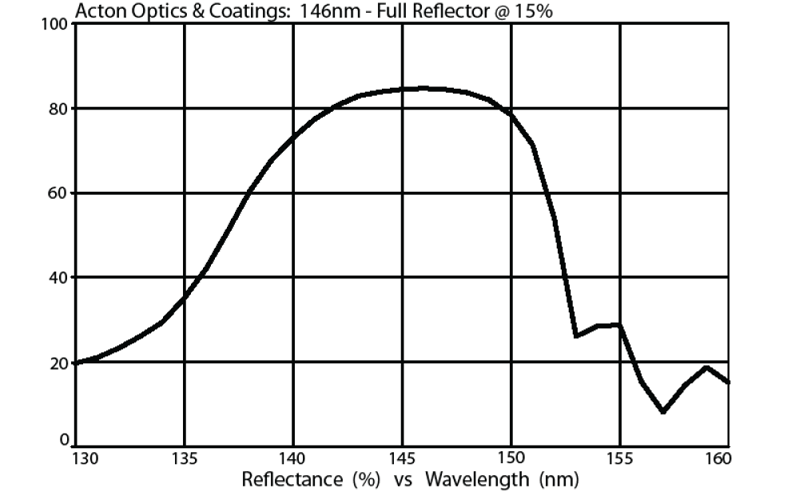

147nm	≥ 75% @ NI	M147-FR-1D-MB	M147-FR-2D-MB

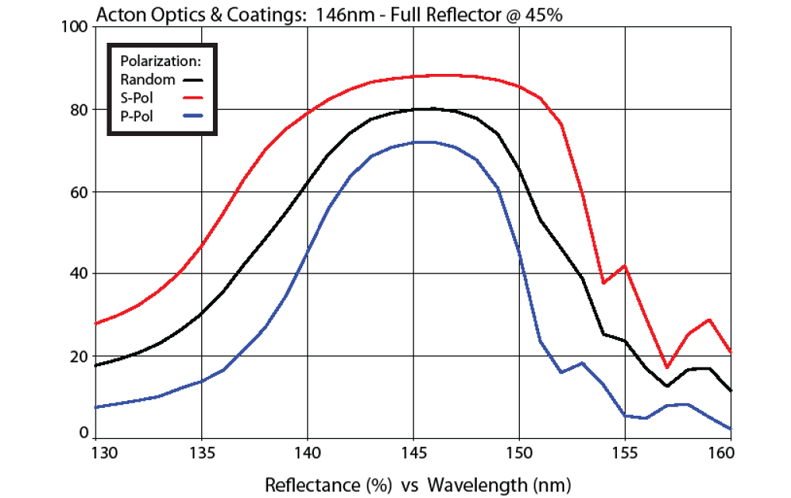

147nm	≥ 70% @ 45° AOI	M147-FR45-1D-MB	M147-FR45-2D-MB

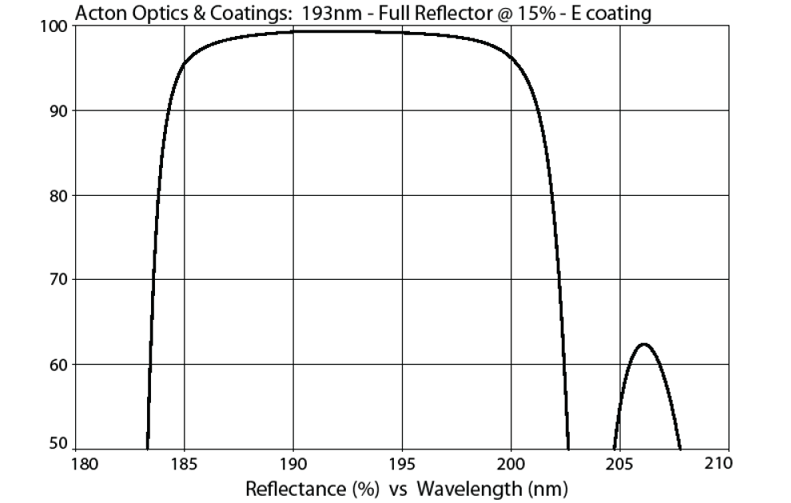

193 nm e	≥ 98% @ NI	M193-FRe-1D-MB	M193-FRe-2D-MB

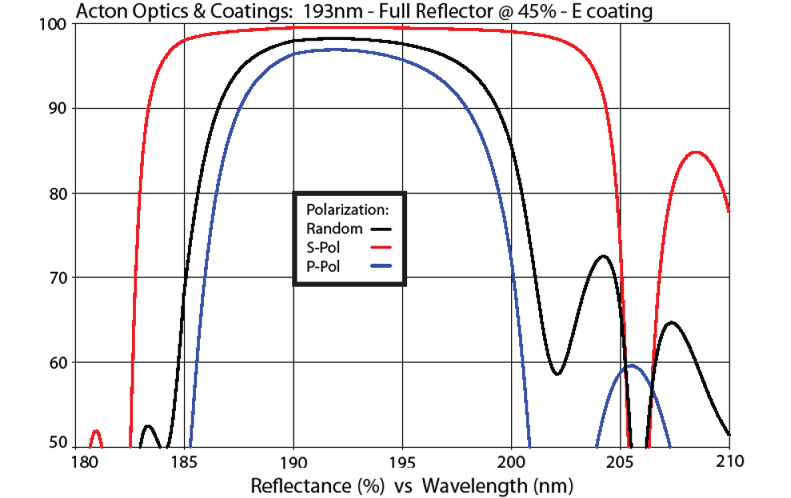

193nm e	≥ 97% @ 45° AOI	M193-FR45E-1D-MB	M193-FR45E-2D-MB

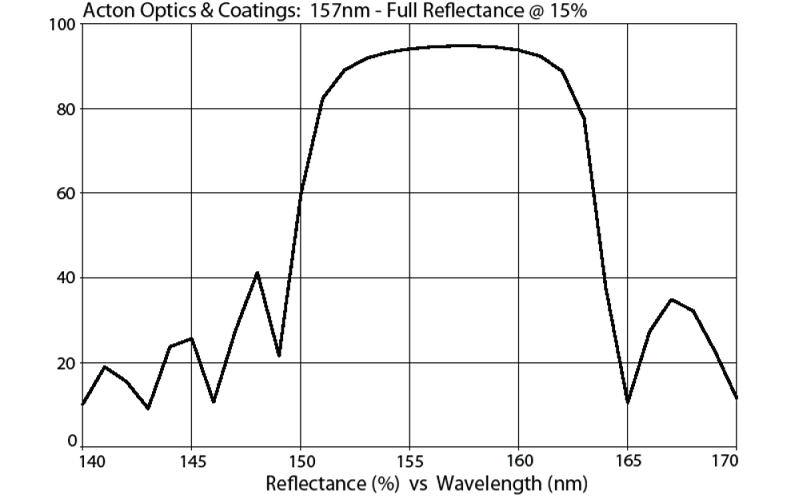

157nm	≥ 89% @ NI	M157-FR-1D-MB	M157-FR-2D-MB

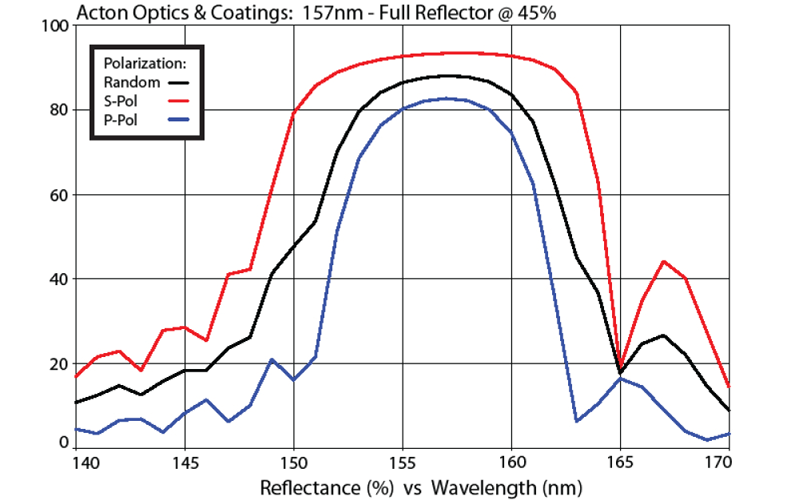

157nm	≥ 87% @ 45° AOI	M157-FR45-1D-MB	M157-FR45-2D-MB

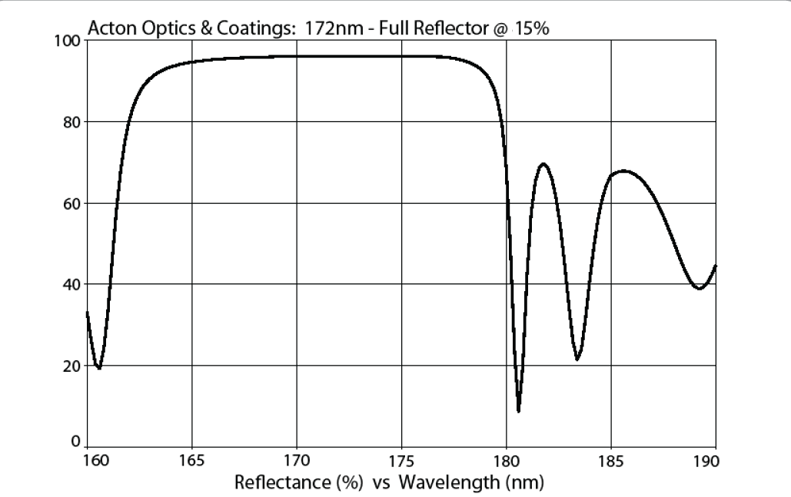

172nm	≥ 93% @ NI	M172-FR-1D-MB	M172-FR-2D-MB

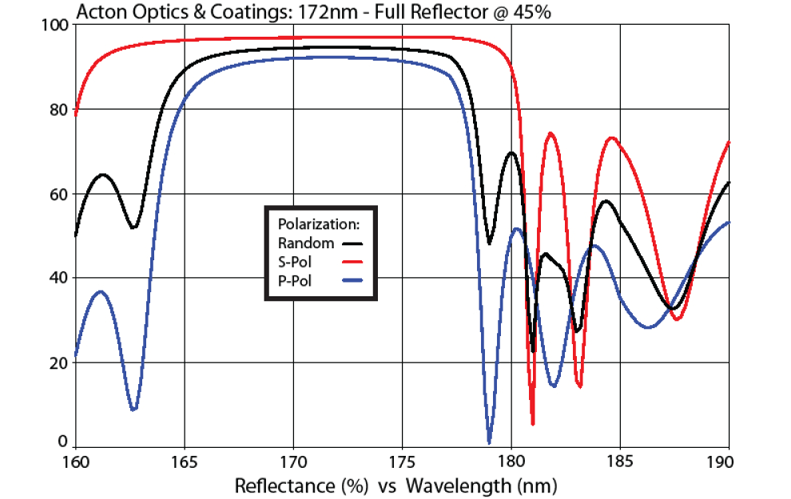

172nm	≥ 90% @ 45° AOI	M172-FR45-1D-MB	M172-FR45-2D-MB

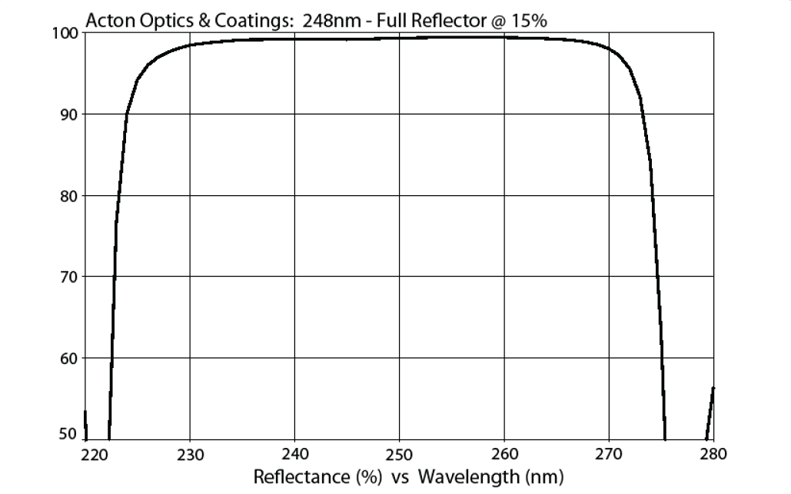

248nm	≥ 98% @ NI	M248-FR-1D-MB	M248-FR-2D-MB

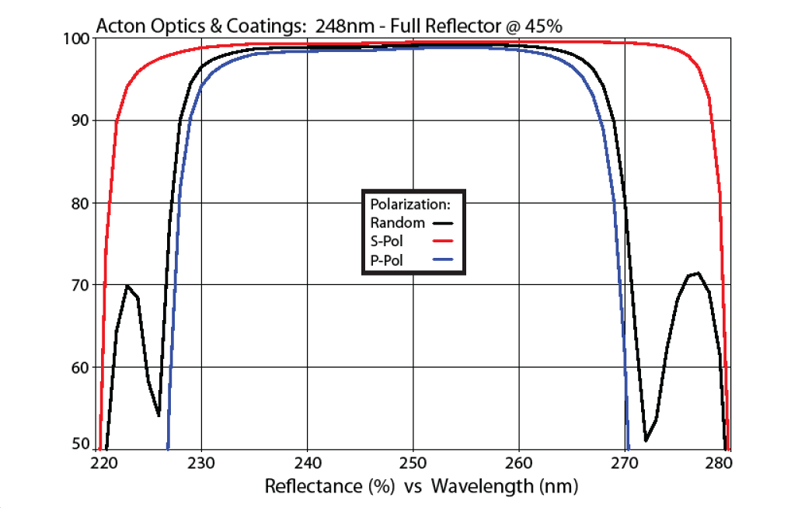

248nm	≥ 97% @ 45° AOI	M248-FR45-1D-MB	M248-FR45-2D-MB

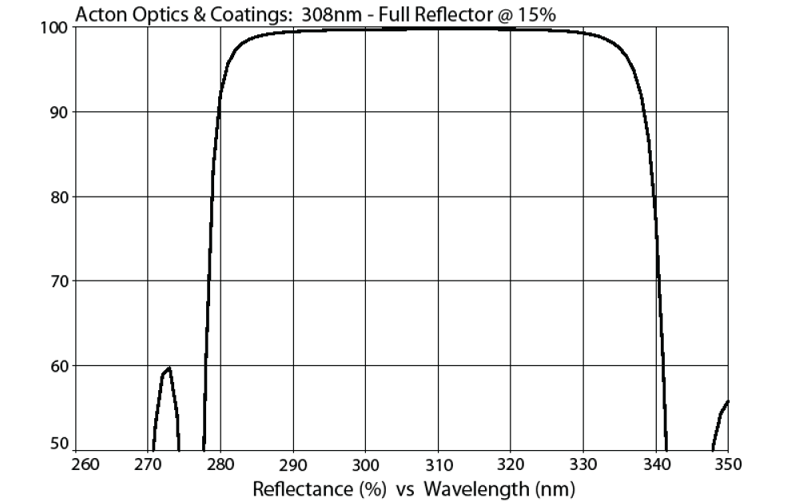

308nm	≥ 98% @ NI	M308-FR-1D-MB	M308-FR-2D-MB

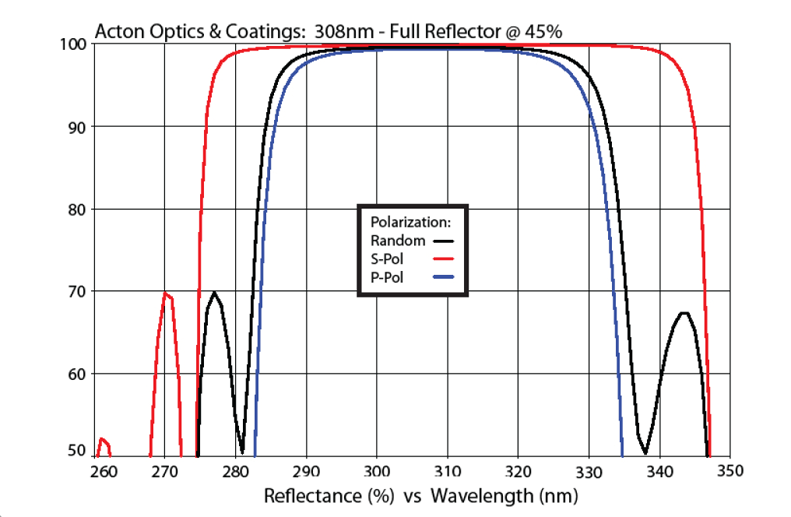

308nm	≥ 97% @ 45° AOI	M308-FR45-1D-MB	M308-FR45-2D-MB

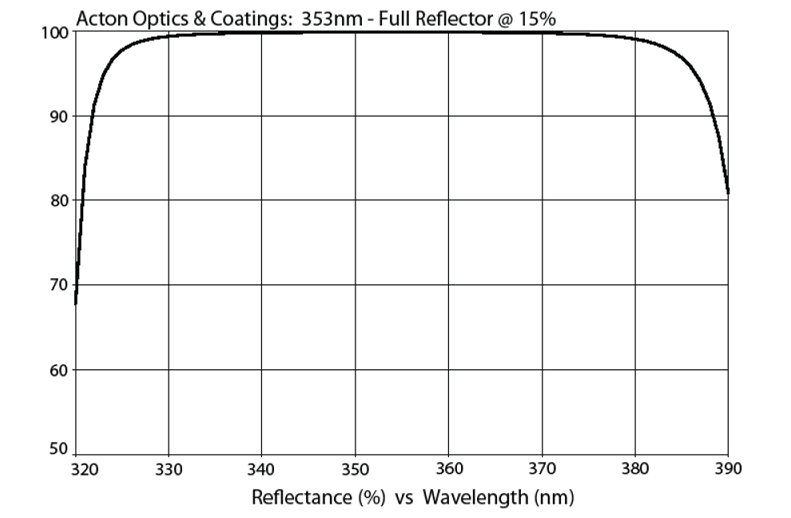

353nm	≥ 99% @ NI	M353-FR-1D-MB	M353-FR-2D-MB

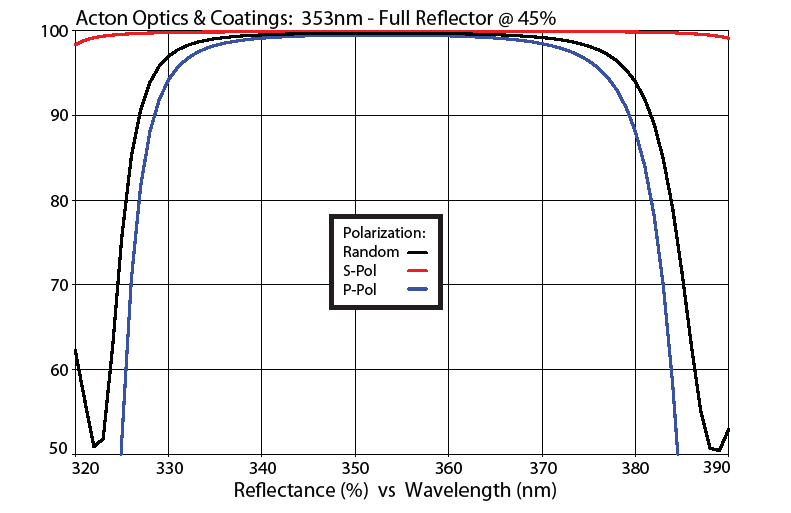

353nm	≥ 98% @ 45° AOI	M353-FR45-1D-MB	M353-FR45-2D-MB
